Overview:

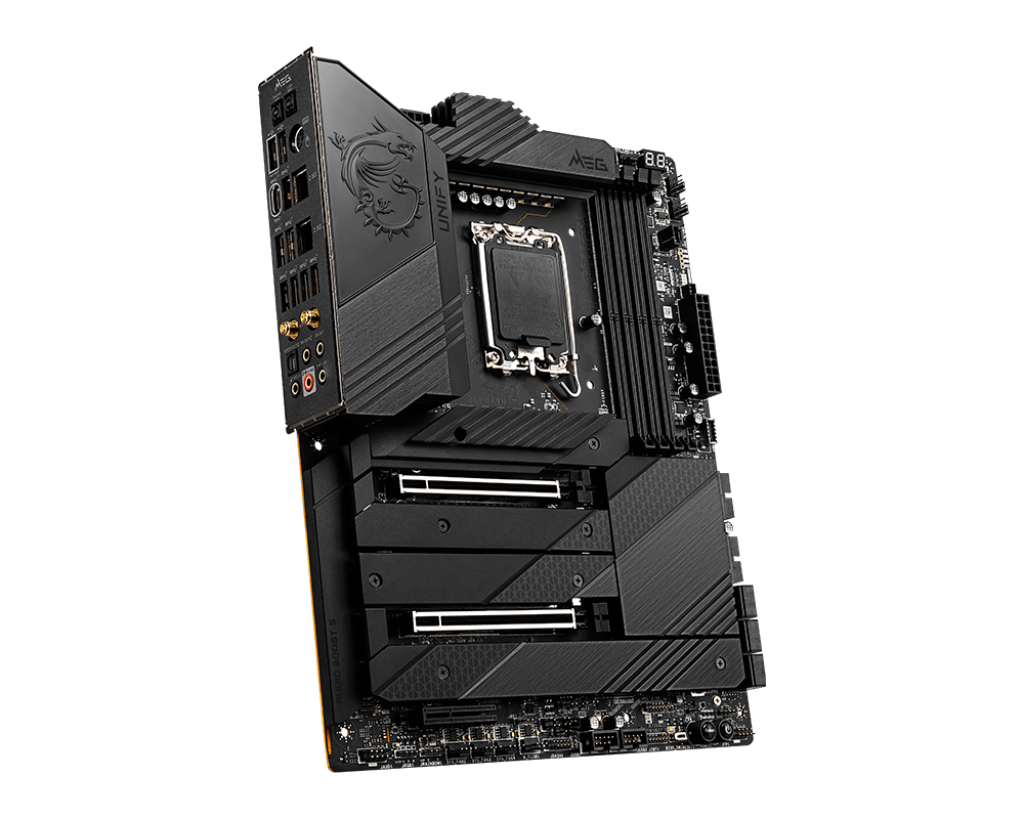

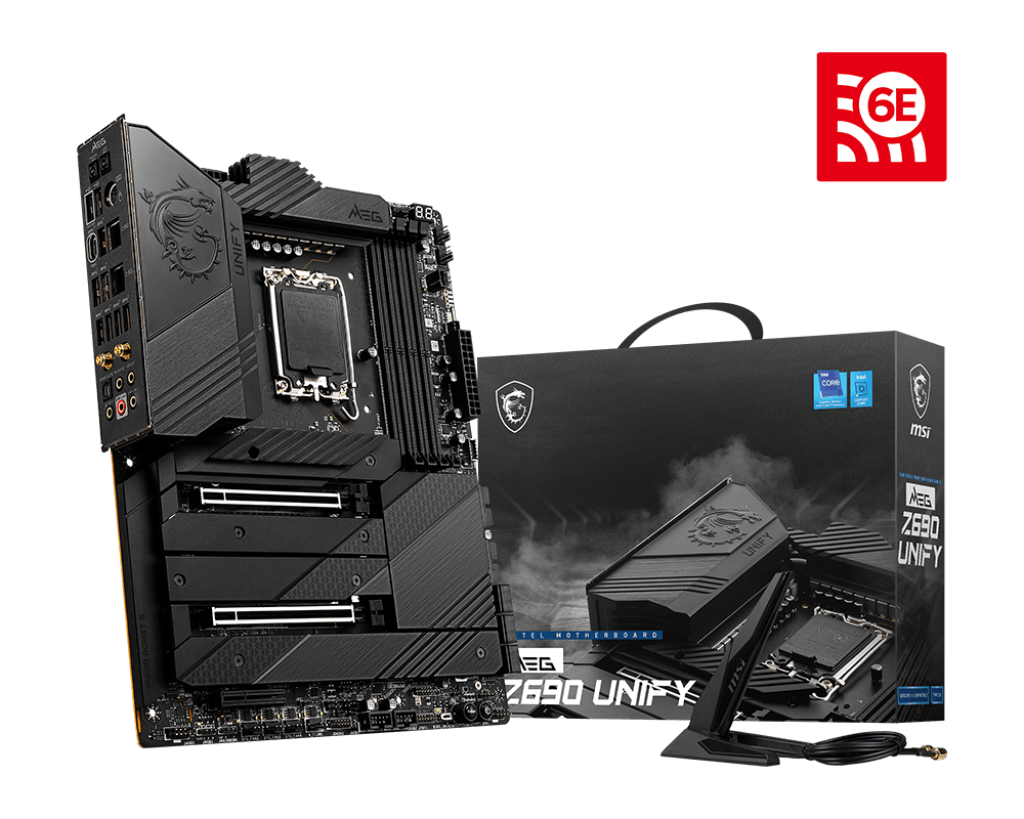

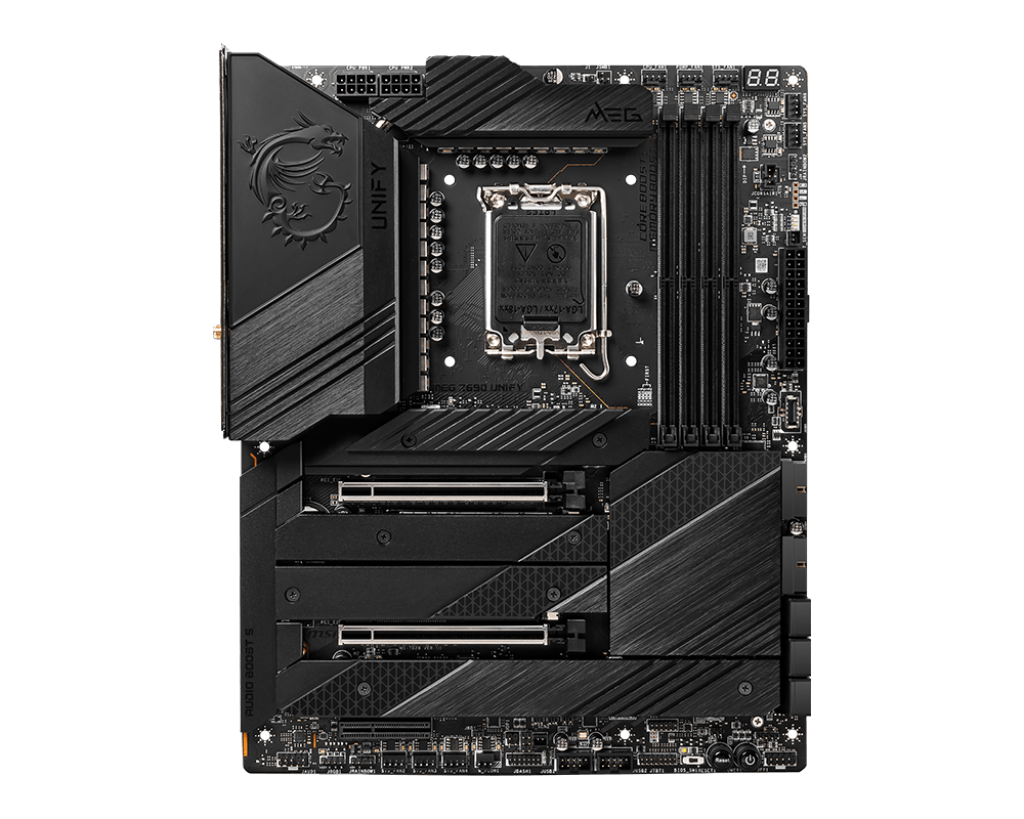

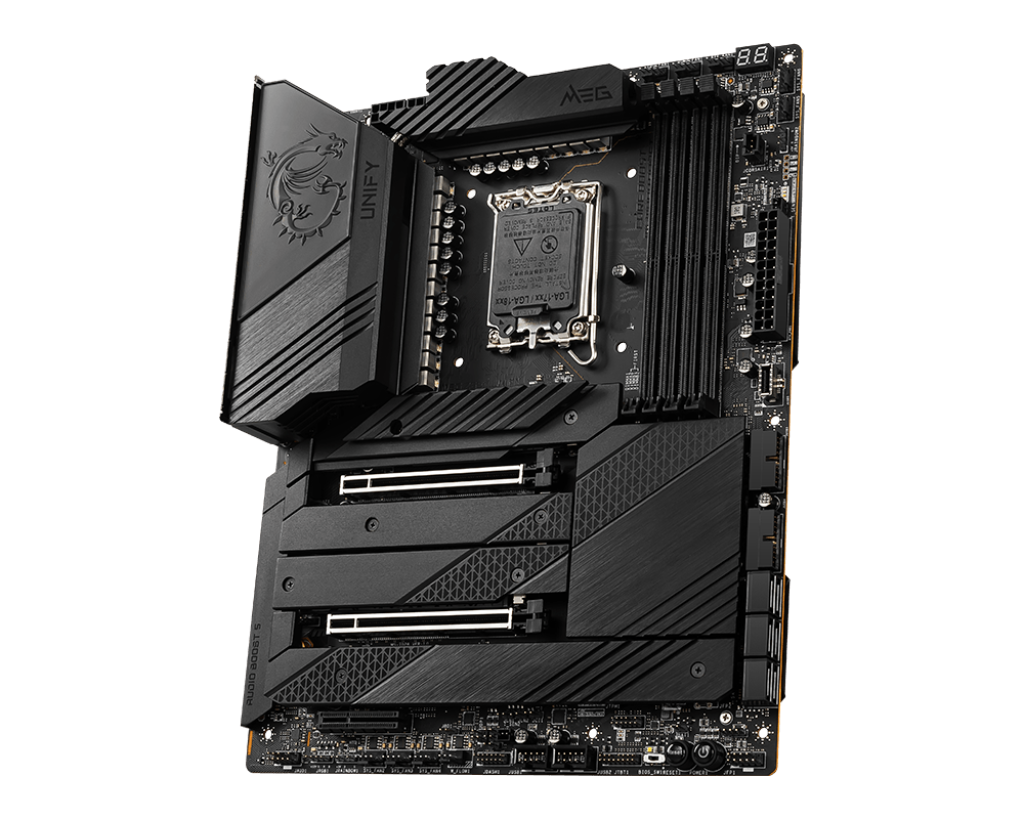

The MSI MEG Z690 UNIFY is a high-performance motherboard designed for enthusiasts who prefer a stealthy, RGB-free aesthetic combined with top-tier overclocking capabilities. Built for Intel 12th and 13th Gen processors, it features a powerful VRM system, advanced DDR5 support, PCIe 5.0 expansion, and premium connectivity.
The UNIFY series focuses entirely on pure performance, stability, and engineering excellence—making it ideal for gamers, creators, and overclockers who want premium features without RGB lighting.

Full Specifications:

• Chipset: Intel Z690

• CPU Support:

  • Intel 12th & 13th Gen Core processors

  • Socket LGA 1700

• Form Factor: ATX

• Memory Support:

  • DDR5

  • Up to 128GB (4 DIMMs)

  • High-frequency OC support (up to 6800MHz+ depending on CPU)

• VRM Design:

  • 19+2 phase power delivery

  • 105A SPS power stages

  • Massive heatsinks with heatpipe cooling

• Expansion Slots:

  • 2 × PCIe 5.0 x16 (Steel Armor)

  • 1 × PCIe 4.0 slot

• Storage:

  • 5 × M.2 slots (PCIe 4.0)

  • 6 × SATA III ports

• Networking:

  • Dual LAN: 2.5G + 10G

  • Wi-Fi 6E

  • Bluetooth 5.x

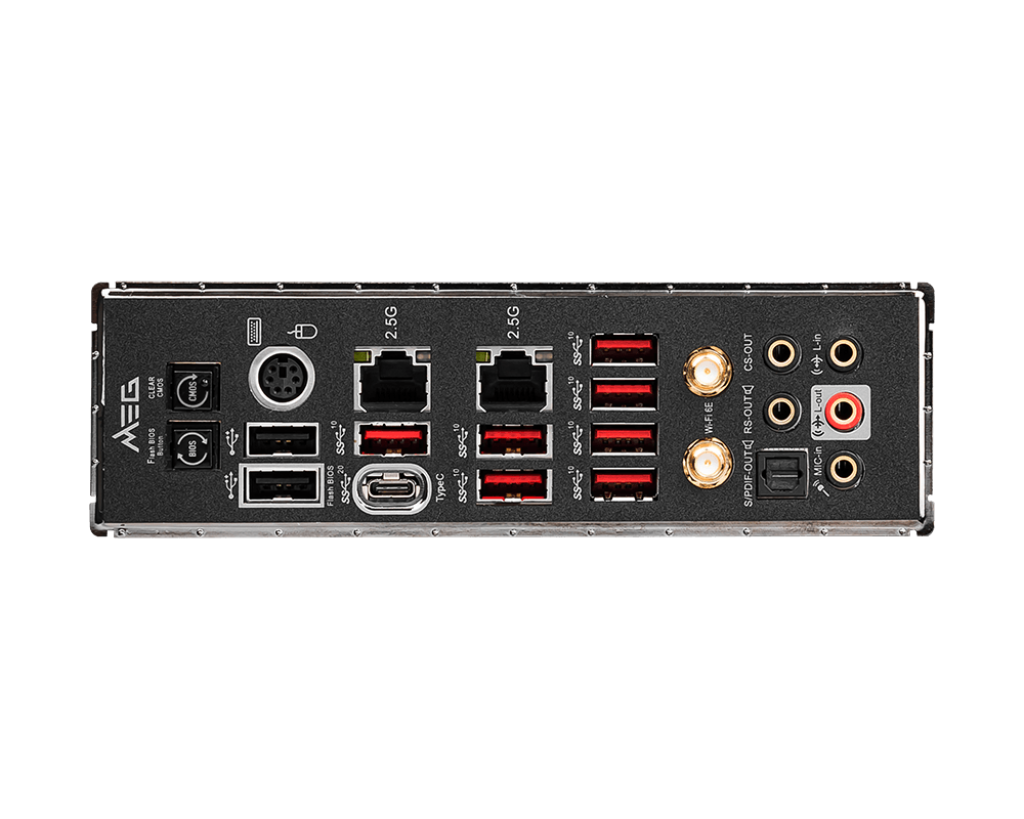

• Rear I/O Ports:

  • USB 3.2 Gen 2x2 Type-C

  • Multiple USB 3.2 Gen 2 & Gen 1 ports

  • Clear CMOS & BIOS Flashback buttons

• Audio:

  • Realtek ALC4082

  • High-end ESS DAC

  • Isolated audio circuitry

• Special Features:

  • No RGB—stealth black UNIFY design

  • Reinforced DIMM & PCIe slots

  • Debug LEDs

  • Extensive OC tools

  • M.2 Shield Frozr cooling

• Cooling Support:

  • Multiple PWM fan headers

  • Dedicated water pump header

  • Extended heatsink coverage

• Ideal For:

  • Overclocking enthusiasts

  • High-end gaming PCs

  • Stealth builds (no RGB)

  • Professional content creation systems
